Precision in Filtering: The Role of Cut- Off Frequency in Lowpass Filters

How does one exclude undesired high-frequency components and facilitate the passage of essential low-frequency signals through a lowpass filter? The answer lies in the meticulous selection and implementation of the cut-off frequency.

Signal processing is integral to the advancement of technology and military applications to guarantee accurate information transmission and reception. It enables the effective operation of communication, radar, sonar, and various surveillance systems. To achieve its full advantage, RF and electrical engineers must meticulously control and analyze signals.

However, signal integrity is often compromised by various disturbances, including noise, which can degrade performance and reliability. RF and electrical engineers commonly employ lowpass filters to enhance signal clarity and maintain system efficiency.

Cut-off frequency defines the boundary between the passband (where signals are transmitted) and the stopband (where signals are attenuated). Precise cut-off frequency selection preserves target signals while effectively suppressing unwanted noise and interference.

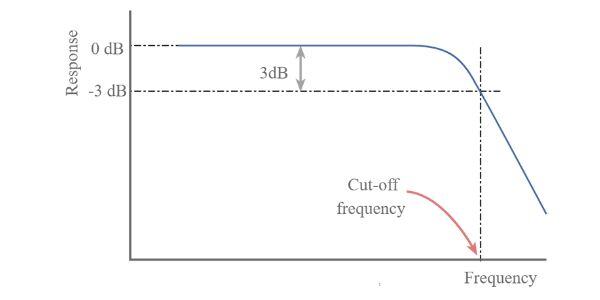

Generic Lowpass Filter Response Cut-Off Frequency via Electronics Notes

Selecting the cut-off frequency for a lowpass filter may initially appear straightforward. However, RF and electrical engineers discover several nuanced considerations, especially when confronted with practical design constraints. Such factors can significantly impact the filter's performance.

Explore the significance of cut-off frequency in lowpass filter design and how it impacts signal clarity and overall system performance in RF engineering.

Determining Signal Quality

The cut-off frequency is the threshold frequency beyond which frequencies are attenuated by the filter. RF and electrical engineers set a cut-off frequency for lowpass filters to allow only the desired low-frequency signals to pass through while effectively attenuating unwanted high-frequency noise and interference.

Selecting specific cut-off frequencies is vital for maintaining robust and secure communication channels, especially in military applications such as electronic warfare (EW) and Signal Intelligence (SIGINT) systems. Carefully chosen frequencies facilitate high data throughput and enhance resistance to interference, ensuring secure communication even in challenging environments.

Optimizing System Performance

The appropriate cut-off frequency filters unwanted high-frequency noise. It enhances signal clarity and allows the system to process only the necessary information.Fine-tuning improves overall system efficiency, reliability, and accuracy. As a result, you can expect better performance in various applications, such as:

• Communication systems

• Navigation systems

• Sensor systems

This is particularly important for systems such as sonar and radar, where precise detection and measurement of low-frequency signals to identify and track targets. The appropriate cut-off frequency keeps the sensor data reliable and actionable.

Customizing Applications

RF and electrical engineers tailor lowpass filters to block out unwanted high-frequency signals while allowing the desired lower frequencies to pass through. Customizing the frequency range allows each application to receive the optimal frequencies for its specific needs, enhancing performance and reliability.

For example, engineers set the correct cut-off frequency to filter out high-frequency noise in navigation systems, ensuring accurate readings and reliable operation. Doing so allows the effective deployment and maneuvering of military vehicles and aircraft in complex environments.

Factors to Consider When Selecting Lowpass Filters for Specific Applications

Understand that Lowpass Filters Have Limitations

Lowpass filters cannot achieve perfect frequency separation as they have limitations in their design and implementation. More selective lowpass filters with steep roll-offs might require more components, larger size, or higher cost. Such filters could introduce phase distortions or signal attenuation. Balance these factors to choose a lowpass filter that meets their needs while managing trade-offs.

Manage Trade-Offs in Lowpass Filter Design

Designing a lowpass filter hinges on critical parameters, particularly the cut-off frequency. It’s crucial to understand performance trade-offs during the design phase to anticipate and manage compromises between filter characteristics such as attenuation, phase response, and insertion loss. For instance, choosing a lowpass filter with a sharper cut-off might improve attenuation of unwanted frequencies but can introduce greater insertion loss and phase distortion.

Evaluating trade-offs at the onset allows for early filter design optimization to meet specific application requirements. They ensure balanced performance and complexity while minimizing potential issues in later development stages.

"You can never have a 'perfect brick wall' filter—one that rejects everything above an exact frequency and passes everything below it. By understanding the performance trade-offs, you can better plan during the design phase to determine if you need, for example, a low rejection lowpass filter, which may require more space."

- David Higginson MBA, PMP, Director of Business Development, Q Microwave

Address Space Constraints in Filter Implementation

Filters designed for precise frequency separation often need more physical space to accommodate additional components and achieve the desired performance characteristics. As a result, the actual size of the filter may be larger than initially anticipated. Such an increase can lead to potential design and integration challenges.

Early assessment of space limitations allows engineers to make informed decisions about which trade-offs are acceptable and how to best balance performance and practicality.

Optimize Your Lowpass Filter Selection with Q Microwave

Determining the correct cut-off frequencies in lowpass filters is crucial for maintaining signal quality, optimizing system performance, and customizing the filters to meet specialized RF applications.

For customized lowpass filter solutions that meet your application's needs, reach out to Q Microwave to receive expert and innovative designs. We will closely collaborate with your team to evaluate any specification trade-offs and comply with relevant industry standards and certifications, such as AS9100 for quality management systems, IPC A-610, and J-STD-001, to provide you with well-balanced and effective solutions.

Book a consultation with Q Microwave today.
