Low Pass Filter Examples: Use Cases and Design Considerations

Summary

• Lowpass filters serve different functions in different RF applications. Some common lowpass filter examples can be found in radar systems, where they reduce unwanted signal components, and satellite and intelligence systems, where they help control interference and improve spectral selectivity.
• RF system requirements can influence a lowpass filter’s design. High power levels, crowded frequency bands, extreme temperatures, radiation exposure, and tight space constraints can determine the filter architecture.
• Advanced filter designs can address limitations that standard lowpass filters may not. Steep roll-offs, compact construction, wide frequency coverage, and absorptive out-of-band filtering help demanding RF systems meet their performance requirements.

Lowpass filters are widely used in RF systems to control unwanted high-frequency energy while preserving the frequencies a system needs. Their performance directly affects signal integrity, interference levels, and the behavior of connected components.

This makes lowpass filters relevant to a wide range of applications, from telecommunications and military defense to aerospace and marine systems. For example, research published in the Scientific Bulletin of the Naval Academy shows how lowpass filtering can reduce harmonic distortion in marine control and supply systems.

The applications below illustrate how lowpass filters are used in practice and what role they play in different RF and electronic systems. Looking at these examples also helps clarify how filter selection and performance can affect overall system behavior.

Use Cases and Real Examples of Lowpass Filters in Modern RF Design

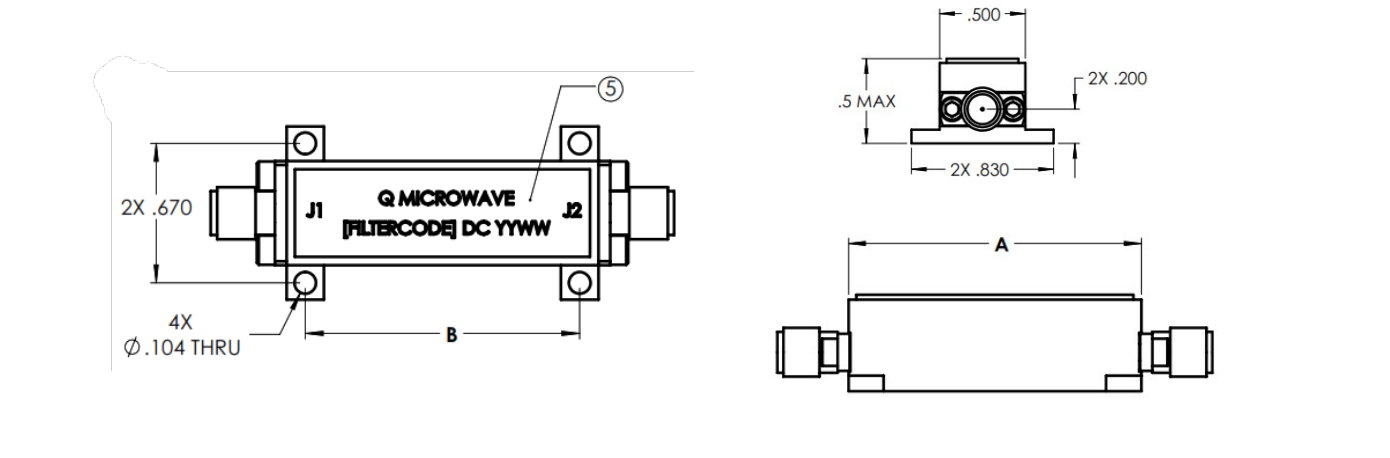

Example Lowpass Filter Mechanical Design

Signal Processing in Radar Systems

Lowpass filters remove unwanted high-frequency components from radar signals to support accurate target detection and tracking. In military and defense systems, maintaining signal quality is particularly important because interference can affect how reliably radar systems detect, identify, and track targets.

These filters can use high cutoff frequencies and steep roll-off characteristics to attenuate unwanted components while preserving the frequencies needed for radar signal processing. Careful filter design helps limit distortion and maintain reliable performance in demanding operating environments.

Key Challenges

Designing lowpass filters for radar systems involves addressing several technical challenges:

Wide Frequency Ranges

• Military radar systems often operate over broad frequency ranges, requiring lowpass filters with broad bandwidth capabilities.
• It takes longer to design filters that maintain desired performance characteristics (e.g., low insertion loss and high stopband rejection) while accommodating wideband signals. Balancing these parameters is inherently more complex.

Power Handling

• Radar systems may transmit high-power signals, imposing stringent requirements on the power handling capabilities of lowpass filters.
• Ensuring filters can withstand high power levels without degradation or damage is crucial for reliable radar operation.

Size and Weight Limitations

• Radar systems in aircraft, ships, or satellites have strict size and weight limitations.
• Designing and manufacturing compact, lightweight lowpass filters that meet performance requirements while minimizing space and weight overheads requires advanced miniaturization techniques.

Performance at High Frequencies

• Lumped element filters up to 20 GHz require steep roll-off characteristics.
• Achieving this performance without compromising other design aspects requires precise engineering and high-quality components.

Pro Tip: For wideband radar systems, avoid selecting a lowpass filter based on cutoff frequency alone. Check how the filter’s transition band and insertion loss affect the frequencies carrying the radar signal, particularly when strong unwanted components sit close to the required passband.

Communications Systems for Satellite Communication

Lowpass filters are integrated into satellite communication systems to mitigate interference and ensure signal integrity. These filters exhibit low insertion loss and high stopband rejection, supporting reliable transmission and signal reception. Designed to withstand wide temperature ranges and radiation exposure, lowpass filters maintain performance and minimize signal degradation in space environments.

Key Challenges

Manufacturing and implementing lowpass filters in satellite communication systems involves overcoming several technical challenges:

Crowded Frequency Bands

• Satellite communication systems operate in crowded frequency bands where interference from adjacent channels degrades signal quality.
• Designing lowpass filters with narrow transition bands and high selectivity that reject out-of-band interference while minimizing signal distortion demands higher precision.

Thermal Stability

• Wide temperature variations in space largely impact the long-term performance of RF system components in satellites.
• Filters must be tolerant of extreme conditions to ensure thermal stability and consistent performance over the satellite’s operational lifetime.

Radiation Exposure

• Space environments expose satellite components to ionizing radiation, which can degrade electronic devices over time.
• Designing lowpass filters with radiation-hardened materials and structures to withstand these effects while maintaining signal integrity is essential for long-term reliability.

Pro Tip: For satellite applications, evaluate filter performance at the temperature extremes and environmental conditions the system will actually encounter. A filter that meets its insertion loss and rejection targets at room temperature may behave differently in orbit if temperature-dependent material properties shift its frequency response.

Electronic Warfare (EW) and Signal Intelligence (SIGINT)

Lowpass filters process signals selectively by rejecting unwanted high-frequency interference in EW and SIGINT systems. They feature sharp cutoff frequencies and high attenuation characteristics to suppress jamming signals and adjacent channel interference. Filters with more advanced designs, including coupled resonator structures or interdigital configurations, support precise spectral control and accurate signal identification in electromagnetic environments.

Key Challenges

Designing and implementing lowpass filters in EW and SIGINT systems presents several key challenges:

Dynamic Electromagnetic Environments

• EW and SIGINT systems operate in unpredictable environments where desired signals are often masked by strong interference or jamming.
• A big challenge in developing adaptive or reconfigurable lowpass filters is dynamically adjusting them to changing conditions without compromising performance.

Agile Frequency Response

• Modern systems require rapid adaptation to changing signal environments to counter emerging threats.
• Lowpass filters with wide tuning ranges and fast switching capabilities require precise performance specifications that accommodate rapid frequency adjustments.

Spectral Interference and Compatibility

• RF systems often share frequency bands with other systems, leading to potential spectral interference.
• Filters that minimize interference with coexisting systems and maximize signal detection sensitivity require a more intricate design that optimizes spectral characteristics.

Pro Tip: EW and SIGINT systems can encounter signal conditions that change faster than a fixed filter response can accommodate. When the threat environment is highly variable, consider whether the filter architecture needs tuning or reconfiguration rather than relying on a single fixed cutoff point.

Q Microwave’s Approach to Custom Lowpass Filter Design

Different systems have diverse requirements. This creates complex and unique challenges when designing lowpass filters for specialized applications. Off-the-shelf models often fail to meet these specifications. The most strategic approach is to order custom filters from experienced manufacturers that provide tailored RF solutions in your industry.

At Q Microwave, we cater to a diverse range of clients in the military, broadband, and aerospace industries. Our team has extensive experience addressing the unique challenges faced by these sectors. Here are the techniques and solutions we employ to resolve them effectively:

Steep Roll-offs

To manage wide frequency ranges, we design filters with sharp cutoff frequencies. They effectively filter out unwanted high-frequency signals while preserving the integrity of the desired signals. This precision suits demanding applications where maintaining signal clarity and reducing interference are paramount, e.g., radar and communication systems.

Wide Frequency Range

To manage high-frequency performance in lowpass filters, we use lumped elements that cover frequencies up to 20 GHz. This capability ensures that our filters can handle a broad spectrum of requirements, maintaining optimal performance across a wide range of frequencies. By accommodating high-frequency needs, filters can provide more reliable, efficient signal processing.

Absorptive Out-of-Band Filtering

Traditional lowpass filters often reflect out-of-band signals, which can cause interference and potentially damage sensitive components like amplifiers. At Q Microwave, we design filters that absorb unwanted energy instead of reflecting it. This absorptive out-of-band filtering prevents harmful reflections that could otherwise degrade the performance of high-powered transmitters. By terminating unwanted energy to ground, our filters ensure the protection and longevity of RF systems, maintaining the integrity and reliability of the entire setup.

Compact Size

Space and weight constraints are critical factors in more complex applications, especially those involving aerospace and portable communication systems. We address these limitations by designing and manufacturing small, custom-made lowpass filters. These compact filters are tailored to fit within the stringent space constraints of your system. We focus on meeting tight product specifications without compromising performance.

Choosing Low Pass Filters for Different Applications

As RF engineers continue to innovate, the importance of lowpass filters in enhancing system performance and reliability will become even more pronounced. Mastering their applications allows engineers to effectively tackle challenges associated with frequency interference, improving signal processing reliability.

For all your lowpass filter needs, consult the experts at Q Microwave. We have the skills and industry experience to deliver custom filters tailored specifically to your project needs. Book a consultation with the team today.

Lowpass Filter Use Cases FAQs

Q. Why might a radar system need a different lowpass filter than a satellite system?

A. The filter has to work within the signal, power, and environmental conditions of the system. Radar applications may place greater demands on power handling and wide frequency coverage, while satellite systems require stable performance under temperature variation and radiation exposure.

Q. When does a lowpass filter need a steep roll-off?

A. A steep roll-off becomes important when unwanted frequencies sit close to the required passband. It allows the filter to provide stronger attenuation without unnecessarily reducing the usable frequency range, which can be important in radar, communications, and other systems with closely spaced signals.

Q. Why would an RF system use an absorptive lowpass filter?

A. An absorptive design can prevent rejected out-of-band energy from reflecting back into the RF chain. This can help reduce unwanted interactions with sensitive components and becomes particularly relevant in high-power systems where reflected energy can affect overall system performance.
