What is a Lowpass Filter? How Does it Enhance Signal Quality?
Maintaining optimal signal integrity is a complex challenge in high-frequency RF systems. Unlike commercial applications, these systems are far more vulnerable to electromagnetic interference, signal reflections, crosstalk, and dispersion. Natural and artificial high-frequency noise sources also affect signal quality, often leading to degraded performance or system failure if not properly managed.
Lowpass filters can combat signal degradation by suppressing or attenuating high-frequency components in a spectrum while allowing low frequencies within a specified range to pass through. Simply put, lowpass filters help achieve cleaner signals and improve signal-to-noise ratio.
A lowpass filter removes high-frequency components from the input signal, producing a cleaner, low-frequency output
Lowpass filters are indispensable in radar and communication systems that must operate reliably in environments prone to interference, such as congested electromagnetic spectrums or deliberate jamming attempts. For example, radar systems often pick up unwanted electromagnetic interference (EMI) or noise from other equipment, distorting radar signals. Lowpass filters suppress this noise by blocking high frequencies while preserving the radar's operating frequency range.
To achieve signal precision in mission-critical radar and communication projects, it’s important to understand and accurately define the role of cut-off frequencies. By definition, cut-off frequency determines the threshold where the filter transitions from passing desired low frequencies to attenuating unwanted high-frequency components. Let’s take a look at how it works in practice.
What is the Role of Cut-Off Frequency in Lowpass Filters?
Cut-off frequency marks the line between the passband, where signals are transmitted, and the stopband, where signals are reduced. Choosing the right cut-off frequency ensures your desired signals are preserved while unwanted noise and interference are filtered out effectively.

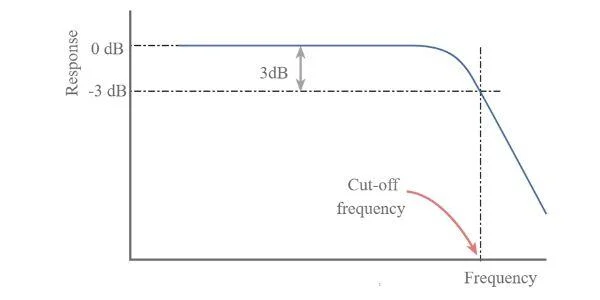

Generic Lowpass Filter Response Cut-Off Frequency via the Electronics Notes
As mentioned, RF and electrical engineers define a cut-off frequency in lowpass filters, allowing only desired low-frequency signals to pass through while effectively reducing high-frequency noise and interference. Precisely calculating these cut-off frequencies is crucial for maintaining reliable and secure communication channels, particularly in military applications like electronic warfare (EW) and Signal Intelligence (SIGINT) systems.
Well-chosen frequencies support high data throughput and enhance resistance to interference, enabling secure and stable communication in demanding environments. Follow these steps to achieve optimal results:
- Align system requirements with signal filtering to determine the optimal cut-off frequency.
- Define passband and stopband based on the signal spectrum and noise floor.
- Evaluate bandwidth, insertion loss, attenuation, and ripple tolerances.
- Simulate filter performance with tools like SPICE or MATLAB.
- Address external factors like EMI, parasitic effects, and thermal variations.
- Prototype and test to verify frequency attenuation and signal fidelity.
It’s also imperative to conduct a thorough trade-off analysis early in the design phase to ensure optimal filter performance based on precise application requirements.
What are the Most Common Applications for a Passive Lowpass Filter?
A 2022 study in Microelectronics Reliability reveals that field emission currents in RF MEMS devices disrupt signal integrity by generating unwanted harmonics during high-power operations. As we know, signal distortions cause instability in critical RF systems. Passive lowpass filters resolve this issue, suppressing unwanted harmonics and maintaining signal integrity for reliable performance.
These and other applications depend on the efficiency of lowpass filters. Let’s explore how they work.
Enhancing Military Communication Systems
Military communication systems use passive lowpass filters to achieve dependable signal transmission among tactical radios, data links, and radar systems. These filters attenuate high-frequency noise, maintaining the integrity of classified communications.
Lowpass filters also mitigate electronic jamming and electromagnetic interference to enable uninterrupted operation in contested environments. The Sentinel A4 Radar, for example, integrates lowpass filters with advanced scanning technology to improve its air defense capabilities and detect multiple threats like drones and missiles.
Optimizing Radar Signal Processing
Radar systems often display cluttered screens with overlapping echoes, false targets, and unpredictable noise spikes, making it difficult to distinguish real signals from interference. Passive lowpass filters eliminate unwanted noise, allowing accurate detection and tracking of targets. They are crucial for radar systems in ground-based and airborne operations, distinguishing real targets from background noise to achieve mission success.
Maintaining Satellite Signal Integrity
Satellite communication relies on passive lowpass filters to maintain signal clarity by filtering out EMI and RFI. Given the harsh conditions of space, such as radiation and space weather, these filters are vital for preventing signal degradation and guarding reliable long-distance communication. Boeing's PTS-P, part of the WGS-11 satellite, is a great example of a system integrating advanced anti-jam features that protect military communication from interference, allowing secure and continuous data transmission during critical operations.
What is the Ideal Lowpass Filter Corner Frequency for Modern Military Projects?
The ideal lowpass filter corner frequency for modern military projects depends on the specific application and system requirements. What is the ideal bandwidth for your specific use case? What noise characteristics should you consider when determining the frequency?
Typically, the corner frequency should be set slightly above the highest frequency of the desired signal to preserve signal integrity while effectively attenuating unwanted noise and harmonics. You can analyze the system’s spectral components and run simulations to balance signal fidelity and suppress interference.
High Pass vs. Lowpass Filters: Which is Best for Your Application?
In addition to lowpass filters, other types of filters include bandpass and high pass filters that manage specific frequency ranges. Both high pass and lowpass filters manage the transmission of specific spectral components while attenuating unwanted frequencies.

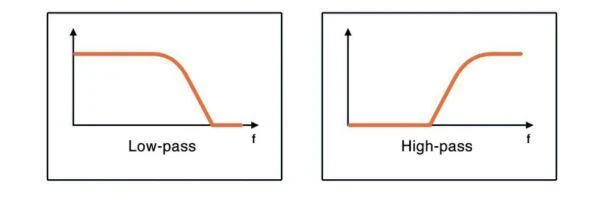

Lowpass vs. High Pass Filters
High pass filters allow frequencies above a specified cutoff point to pass while attenuating frequencies below it. In contrast, lowpass filters permit frequencies below a specified cutoff point to pass while attenuating those above it. To determine which type of filter is best for your use case, you must analyze the signal's frequency characteristics and the application's performance requirements.
When Do You Need a Lowpass Filter?
You need a lowpass filter to attenuate high-frequency interference and noise and preserve and accurately process low-frequency signals. Here are several scenarios where implementing a lowpass filter is crucial:
Communication Systems
A lowpass filter transmits low-frequency signals in communication systems, particularly in military applications. These filters maintain the fidelity of these signals by mitigating the impact of high-frequency interference.
Radar Systems
A lowpass filter removes high-frequency interference in radar technology to achieve precise target detection and tracking. It maintains the clarity of radar signals to facilitate accurate target identification and tracking.
When Do You Need a High Pass Filter?
You need a high pass filter to block low-frequency noise or interference while allowing high-frequency signals to pass through for precise and reliable signal transmission. Consider the following scenarios where implementing a high pass filter is essential:
Eliminating Low-Frequency Noise
A high pass filter is necessary to attenuate undesired low-frequency components or interference within a signal. In audio engineering, these filters can remove rumble or hum from recordings to enhance signal fidelity.
Preserving High-Frequency Signals
You can rely on a high pass filter when the critical information within your signal resides in higher frequencies. This filter blocks low-frequency noise to maintain the integrity of high-frequency voice signals in communication systems.
Electronic Surveillance
A high pass filter eliminates low-frequency background noise in electronic surveillance and intelligence gathering to detect and analyze high-frequency signals. This process enhances signal clarity and detection accuracy.
Sonar and Radar Systems
High pass filters detect high-frequency signals and remove low-frequency clutter for accurate target detection and tracking.
How Are RF Lowpass Filters Customized for Cutting-Edge RF Applications?
It’s clear that lowpass filters are powerful components with significant utility. However, like any other microwave filter, there is no one-size-fits-all approach to designing a lowpass filter for a specific project.
Achieving precise filtering is a constant challenge in advanced military, broadband, and aerospace systems, particularly those requiring steep roll-offs. For example, compact lowpass filter designs leave little room for components, forcing engineers to prioritize space over additional features. If a project demands high power, engineers must redesign circuits to handle the additional load. These factors make off-the-shelf filters inadequate for specific projects. Custom RF lowpass filters are critical in these cases, as they can be engineered to meet precise operational requirements.
Customized vs. Off-the-Shelf Solutions
The most significant difference between tailored and off-the-shelf RF lowpass filters is precision. Off-the-shelf filters are more readily available and cost-effective but are not designed with the precision required for critical systems. Meanwhile, manufacturing custom filters requires more work. However, they’re custom-engineered to meet precise frequency, insertion loss, and environmental requirements.
When to Use Off-the-Shelf Filters
Choose off-the-shelf filters for standard applications with common frequency ranges and performance requirements. Off-the-shelf filters are readily available, cost-effective, and reliable, making them a great choice for projects with tight deadlines or simpler requirements.
When to Use Custom Filters
Opt for custom filters if your application requires specific frequencies, strict performance metrics, or unique size constraints. Custom filters work best for advanced systems like aerospace, defense, or high-end telecommunication use cases.
“Custom filters are built to meet specific requirements and balance critical trade-offs, making them ideal for communication systems and signal processing, especially in defense and aerospace applications, a specialty of Q Microwave.”
- David Higginson, MBA, PMP, Director of Business Development, Q Microwave
Designing and manufacturing custom lowpass filters requires careful trade-offs between performance, cost, and manufacturability. You must achieve precise frequency response, minimize insertion loss, and address size and power constraints while staying on schedule. Material selection, thermal management, and maintaining tight tolerances during production can make this process even more challenging.
Working with an experienced filter manufacturer streamlines the process through custom design solutions and expert support. To achieve these benefits, partner with a manufacturer with certifications like ISO 9001, advanced fabrication tools for precision tuning, and expertise with specialized materials. Inquire about their lead times, track record with similar projects, and ability to provide technical support.
How Does Q Microwave Manufacture Lowpass Filters?
Custom RF manufacturers like Q Microwave produce and deliver lowpass filters according to your project requirements. We’ll outline the structured process at Q Microwave, from initial design to final delivery.
Step 1: Initial Design Development
We will work with your team to define specifications, whether they require a narrow or wide frequency range, select the best materials, and address critical factors that may affect the filter’s performance, such as insertion loss, cutoff frequency, power handling, and environmental resilience.
Step 2: Confirming the Quote
Our team will develop a schematic and simulate the filter’s performance, providing you with an S2P file for verification. Once you approve the design, we will move forward with production.
Our typical lead time for this step will be 3 to 5 working days.
Step 3: Manufacturing Process
We will provide a detailed quote outlining costs, timelines, and the scope of work, giving you full transparency into every aspect of the project before manufacturing begins.
Q Microwave uses advanced simulation tools like AWR Microwave Office to develop preliminary designs before transitioning to prototyping. Our engineers create detailed models of lowpass filters and fine-tune their parameters to achieve optimal performance prior to fabrication.
“There's a difference between what can be physically built and what can be simulated. While simulations can make anything seem feasible, real-world constraints often differ. It’s important to include a buffer between the final specification and the simulation to provide headroom, as the built product will never perfectly match the simulation.”
- David Higginson, MBA, PMP, Director of Business Development, Q Microwave
Step 4: Advanced Tuning and Adjustment Techniques
Our skilled RF engineers will fabricate the filter using advanced equipment and precision techniques following the finalized design. Lead times may vary with material availability, but we will meet or exceed industry standards.
Step 5: Comprehensive Testing and Validation
After the initial fabrication, we will perform rigorous testing, including thermal, shock, and altitude assessments, to confirm that your filter meets performance criteria. These tests follow industry standards for performance and compliance, such as AS9100, IPC A-610, and J-STD-001.
We evaluate filter performance using a Vector Network Analyzer (VNA), which measures scattering parameters (S-parameters) to assess gain, loss, impedance, and phase group delay. The VNA also compares performance metrics to the simulation model to meet the criteria for insertion loss, return loss, ripple, and rejection.
Step 6: Post-Delivery
Even after delivery, our team will remain available to provide ongoing support. We value your feedback as we continuously strive to improve and guarantee your satisfaction with the final product.
Q Microwave designs and delivers high-quality lowpass filters customized to your specifications with competitive lead times. We apply continuous innovation, best practices, and rigorous quality control to test filters and guarantee reliable long-term performance under various environmental conditions.
