Mastering Bandpass Filters (A Guide for RF and Electrical Engineers in Military and Aerospace)

Surveillance and reconnaissance, covert operations, space exploration. These aren't simply sci-fi plots but real-world applications powered by high-performance microwave components. As these kinds of advanced technology become the standard, chances are, you're already working on them.

You need to focus on precision components that can determine the success or failure of your project to achieve reliable signals for critical applications. Bandpass filters are among the essential components you must consider. These filters isolate desired frequency ranges, letting through the signals you need while blocking everything else.

This guide serves as an in-depth resource for exploring real-world applications, recent innovations, and advanced design techniques and solutions related to bandpass filters:

1. What are Bandpass Filters?

2. 3 Most Common Bandpass Filter Types

3. Pros and Cons of an Analog Bandpass Filter vs. Digital Filter

4. Bandpass Filter Transfer Functions: Understanding Their Significance

5. Bandpass Filter Cutoff Frequency (What it is and how to determine the appropriate value)

6. How Bandpass Filter Cutoff Frequencies Impact Military Tech

7. Latest Innovations in Bandpass Frequency and Filters for RF Engineering

8. How Are Bandpass Filter Circuits Made?

9. Testing Your Bandpass Filter Design: A Diagrammatic Approach

10. 3 Ways to Test the Quality and Bandwidth of a Bandpass Filter

11. 5 Factors to Determine Your Need for a Custom Microwave Bandpass Filter

12. How Are Custom RF Bandpass Filters Made?

What are Bandpass Filters?

Did you know that the foundation of modern filter theory and practice emerged during World War II? Some filter types can trace their origins back to the 1800s. Most engineers are familiar with bandpass filters, but there's so much more to this powerful technology that makes it indispensable to critical applications.

A bandpass filter allows the transmission of a specific range of frequencies, defining the bandwidth as the width of the passable frequency band. The difference between the filter's cut-off frequencies determines bandwidth and shows how much information can pass through.

Bandpass filters help eliminate unwanted noise from a signal by rejecting frequencies below and above the target range to leave only a specific frequency band known as the 'passband.'

• Center frequency determines the midpoint of the frequency range.

• Bandwidth is the width of the frequency range transmitted.

• Passband ripple refers to a variation in the passband's amplitude.

• Roll-off rate indicates how sharply frequencies outside the passband are attenuated.

• Q Factor determines the quality of the filter, affecting selectivity and bandwidth.

• Insertion loss represents the signal loss within the passband.

Each characteristic shapes a filter's performance and effectiveness in different scenarios. Just as important, the materials used to build a bandpass filter have unique strengths, which make them better suited for specific projects than others.

Bandpass Design and Materials

Manufacturers craft bandpass filters using various materials, each with advantages and disadvantages. They often utilize lumped elements, combline, ceramic, microstrip, and waveguide materials.

Your project's objectives dictate the material you use for your bandpass filter. Consider the needed frequency ranges, bandwidths, insertion loss, dimensions, cost, and power handling capabilities.

Understanding the SWaP-C trade-offs among these materials is helpful when determining what you need for your specific project.

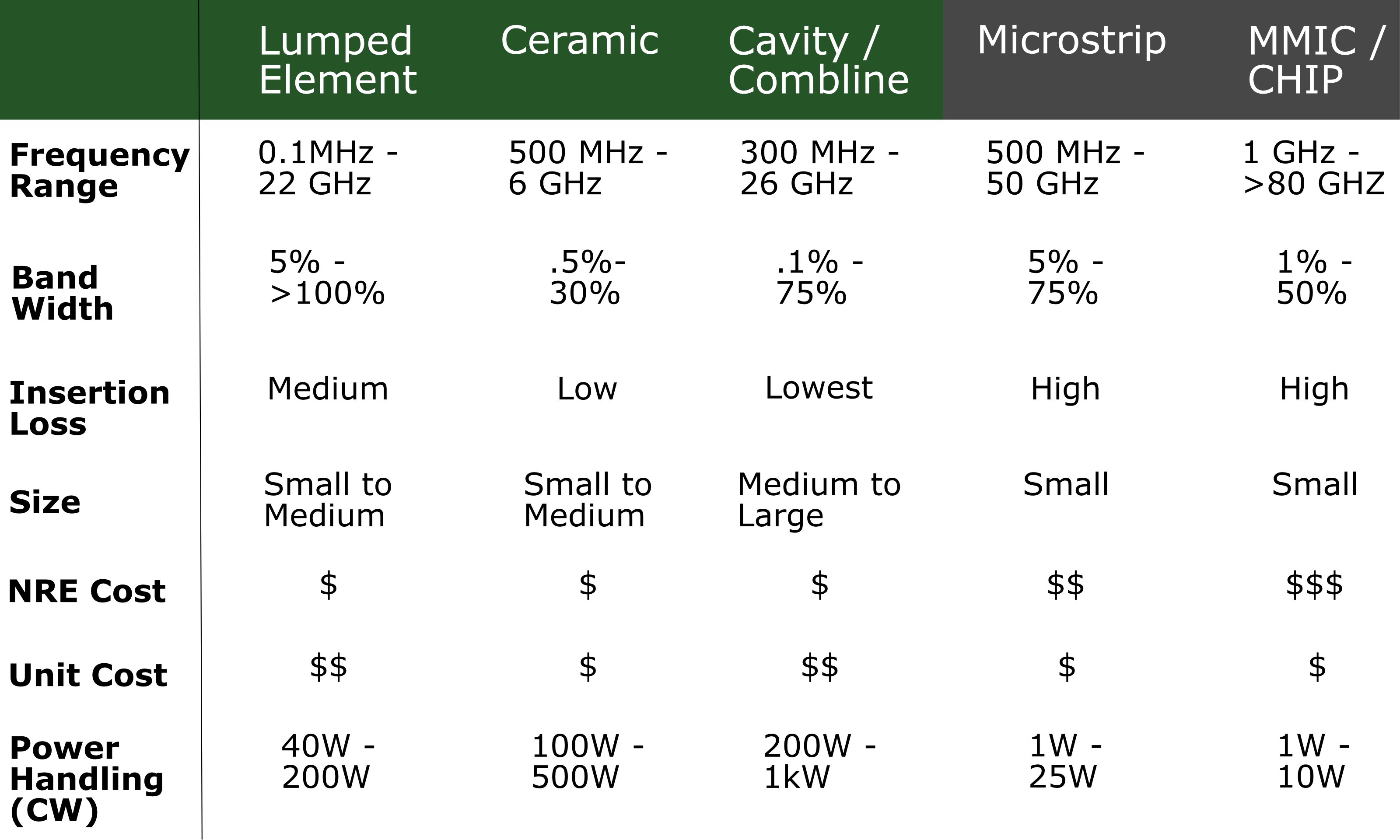

Filter Technology Trade-offs (Q Microwave Offerings Highlighted in Green)

Real-World Applications of Bandpass Filters

Military Uses

Bandpass filters are integral in military radar systems, as they isolate and eliminate unnecessary frequencies to maintain accurate data on a target's location, speed, and direction.

Aerospace Advancements

Major players like NASA emphasize the incorporation of RF and microwave components in new satellite communications systems. NASA uses space-to-ground RF to transfer data, which is crucial to the success of satellite and spacecraft operations.

Broadband Communications

Bandpass filters are used in equipment such as cable modems and set-top boxes. LC filters, in particular, separate signal channels to filter out undesirable electronic signals and reduce interference.

3 Most Common Bandpass Filter Types

Did you know that the Radio Frequency (RF) filter market is set to surpass $45 billion USD by the end of 2035? Various bandpass filter types are growing in need worldwide with the explosion of microelectronics, especially in the defense and aerospace industries.

Let's take a closer look at three of the most common types of bandpass filters and where they're typically used:

LC (Inductor-Capacitor) Bandpass Filters

LC filters are often used in radio communication systems and electronic warfare equipment, making them suitable for low-to-mid-frequency applications where compact size and cost-effectiveness are crucial. These filters are practical for many applications where extreme performance isn't necessary.

Surface Acoustic Wave (SAW) Bandpass Filters

SAW filters excel at handling high frequencies, typically ranging from around 10 MHz to several GHz. Wireless communication systems use SAW filters to achieve efficient and reliable signal transmission.

Cavity Bandpass Filters

Cavity filters are known for their high selectivity and power handling capabilities, which make them indispensable for high-frequency, high-stakes applications. These filters efficiently manage high frequencies in challenging environments to aid spacecraft communication.

Pros and Cons of an Analog Bandpass Filter vs. Digital Filter

Deciding between an analog bandpass filter and a digital filter is a serious decision in any RF engineering project. Choosing the right filter involves balancing achieving the desired signal processing performance while considering your application’s longevity and environment.

Understanding what each type offers and how they suit different project needs can help you better evaluate the pros and cons of analog versus digital bandpass filters.

Bandpass Filter Transfer Functions: Understanding Their Significance

The transfer function of a bandpass filter helps you understand how it changes the amplitude and phase of different frequencies. Simply put, this function explains how the filter shapes a signal as it moves through, showing which parts are amplified, reduced, or left as they are. It’s often represented by equations that relate the input and output voltages or currents, using different notations based on the specific context.

Understanding the basics of transfer functions helps make sense of their real-world applications. Let's explore where they are used in practice.

• Audio Applications— Bandpass filters maintain sound signal integrity while removing unwanted noise. They are also versatile and can be tailored for high-pass, low-pass, or bandpass functions.

• Image Processing— Bandpass filters help remove noise and enhance image contrast, which is critical in industries like medical or radio imaging.

A custom solution is essential if a standard filter doesn't meet your project's requirements, particularly in fields like military communication systems, satellite technology, and medical imaging.

Bandpass Filter Cutoff Frequency (What it is and How to Determine the Appropriate Value)

What are the key parameters of a bandpass filter?

Three main factors define a bandpass filter: the center frequency, the bandwidth (BW), and the cutoff frequencies. Cut-off frequencies, often called the lower and upper cutoff points, show where the filter begins to lose efficiency. This means the power falls to half the passband value, or -3dB.

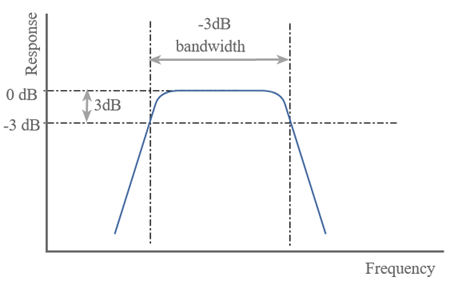

Generic Bandpass Filter Response

An ideal RF bandpass filter would have zero insertion loss within the passband and offer infinite attenuation in the stopband. However, designs often face challenges due to material properties and fabrication tolerances.

RF engineers optimize these filters by minimizing insertion loss to achieve sharp roll-offs and maximize rejection in the stopband.

How Bandpass Filter Cutoff Frequencies Impact Military Tech

Military technology demands precision and the ability to overcome adversary interference without compromise. A well-tuned bandpass filter cutoff frequency can decide between mission success and failure.

What exactly do military applications require from these customized bandpass filter devices?

• Military commanders need frequencies that offer a broad overview and control over multiple assets while detecting and preventing interference, hijacking, or jamming. Engineers are tasked with creating compact, versatile devices integrating active bandpass filters for land and water communications.

  These devices must handle extreme conditions while becoming smaller and more powerful.

• Defense equipment, especially unmanned reconnaissance tools, requires long-range communication and precise frequency filtering despite size constraints. Instead of traditional trade-offs in size, payload, or range, new demands focus on minimizing compromises using advanced technologies and custom bandpass filters.

• Special operations demand advanced communication methods, leveraging high-precision RF bandpass filters for superior signal clarity and enhanced noise rejection. Applying RF bandpass filters in innovative ways allows for more precise cutoff frequencies and enables the creation of custom devices with enhanced performance.

Latest Innovations in Bandpass Frequency and Filters for RF Engineering

Recent breakthroughs are changing how RF engineers approach bandpass frequency control, making building more precise, powerful, and efficient systems possible. Below are two of the most significant bandpass frequency and filter advancements that define the future of RF engineering

Intelligent Tunable Filters

Tuning filters isn't new, but people are always finding better ways. In military scenarios, opposing sides often use radio interference as a tactic.

Intelligent tuning goes beyond manual operator tuning and involves changing bandpass filter designs. A recently published study highlights three possible design alternatives: On-chip tunable bandpass filters, Microstrip tunable bandpass filters, and Substrate integrated waveguide bandpass filters.

More Compact and Affordable Bandpass Filters with 3D Printing

The U.S. military is exploring how commercial RF applications, especially cell phone technologies, can be used. Portable, 5G-enabled cell phones effectively demonstrate how to use bandpass frequencies.

Innovative 3D printing techniques are developing bandpass filters to meet the demands for durability and affordability. New SLA (stereolithic) 3D printing techniques show promise in producing high-quality, affordable bandpass filters.

The Euclid mission is an exciting space project focused on gathering highly accurate data from a broad spectrum. Euclid's data collection covers three primary passbands, each twice as wide as conventional ones unaffected by atmospheric absorption. RF filters will help refine out-of-band blocking to improve data integrity.

How Are Bandpass Filter Circuits Made?

Building bandpass filter circuits is a fascinating journey that requires thoughtful planning, the right materials, and a meticulous manufacturing process. Let’s explore how Q Microwave creates these RF components.

1. Design Considerations

The design phase includes high-power analysis and amplitude matching. Q Microwave uses advanced software to customize filter performance for RF requirements.

2. Material Selection

Q Microwave will verify that all materials are tested against Mil-Standard specifications and other rigorous internal quality standards. For example, our team will screen capacitors to a 0.1 pF tolerance for consistent and repeatable manufacturing, even for the most complex bandpass filters.

3. Manufacturing Process

Q Microwave produces various filters ranging from 20 MHz to 50 GHz.

4. Quality Assurance

After selecting the materials and manufacturing the filter, we conduct quality assurance to verify its reliability and performance. Q Microwave’s RF engineers work meticulously to identify and eliminate potential failure points according to the ISO 9001 standards.

Testing Your Bandpass Filter Design: A Diagrammatic Approach

Burt Rutan once said, “Testing leads to failure, and failure leads to understanding.” Only with rigorous testing can we establish whether it will operate effectively when deployed, even in harsh environmental conditions.

Not all bandpass circuits will go through every testing process. However, here are the five major types of tests that Q Microwave typically conducts:

Temperature Cycling

Temperature changes can weaken the bandpass filter, so engineers conduct temperature cycling tests for potential weaknesses. Temperature cycling tests confirm if the filter remains stable in extreme conditions, and some custom designs need this verification.

Vibration Testing

Vibration testing is more common in military applications. Since high-speed travel generates vibrations that can disrupt components, RF engineers use vibration testing to maintain reliable filter performance.

Burn-in Testing

Burn-in testing identifies random component failures, particularly for high-power or long-use applications. Filters connect to a power supply for 72 hours to 10 days, with optional additional temperature testing.

Leak Testing

Leak testing ensures that hermetically sealed filters resist humidity and altitude. Tests confirm that laser sealing effectively prevents gas or liquid ingress.

Frequency Testing

A network or spectrum analyzer verifies the filter's response across its frequency range. Engineers make fine-tuning adjustments, such as coil tuning or structural changes, to meet specific cutoff frequencies until the filter passes.

Final Bandpass Filter Testing and Inspection

Bandpass filter prototypes must pass all tests before final cleaning, sealing, and inspection.

RF engineers will confirm that all design requirements are met through final testing after cleaning. Once all checks are complete, they prepare the filter for shipment.

3 Ways to Test the Quality and Bandwidth of a Bandpass Filter

Every RF engineer knows that precision and reliability form the foundation of effective bandpass filter performance. But when an off-the-shelf filter doesn’t match what you need, expert manufacturers, like Q Microwave, take over. Let's cover the three main types of tests our team performs.

1. Environmental Testing

Filters face extreme heat and cold to ensure reliable performance, especially as climate change pushes components to their limits.

Some examples are radar sites in Alaska, which have faced issues like soil erosion that impact filter performance. Satellites also operate in harsh conditions, so engineers test filters to verify their ability to withstand space conditions.

2. Frequency Testing

Frequency testing checks if a bandpass filter's cutoff frequency matches the specifications. Engineers test different materials, like ceramic resonators, combline filters, or lumped-element filters. Each type has unique properties, which engineers test to confirm the filters work properly in real-world conditions.

3. Final Testing

Once materials arrive, engineers tune and test them for environmental and mechanical durability.

RF Engineers conduct follow-up evaluations to ensure standards are met. This rigorous process has kept Q Microwave an industry leader for over 25 years.

5 Factors to Determine Your Need for a Custom Microwave Bandpass Filter

When does an application require a custom solution? Sometimes, the unique demands of a project push standard components beyond their limits. In those cases, choosing a custom filter makes all the difference.

Here are five factors that can help determine if you need a custom microwave bandpass filter.

1. Tight Specifications

A custom filter is ideal for precise parameters like narrow bandwidth and specific frequency response, with minimal signal loss and high reliability.

2. Volume vs. Cost

Off-the-shelf filters work if your requirements are flexible and cost is a priority. However, a custom filter can be worth the investment if your system needs high performance, especially for long-term value.

3. Integration and Size

Custom filters can be designed to fit specific sizes and integration needs, which makes them ideal if off-the-shelf options don’t fit well with your system.

4. Lead Times

Custom filters take longer to develop. If your timeline allows, the benefits can outweigh the wait.

5. Environment and Durability

Custom filters can withstand extreme temperatures, shock, or vibration, which makes them suitable for aerospace or defense applications.

How Are Custom RF Bandpass Filters Made?

Quality components, like bandpass filters, help filter unwanted frequencies as more technology is added to the spectrum. But because of modern evolved technology, not every application in our world’s crowded frequency spectrum can use an off-the-shelf RF filter.

Engineers often need custom-made filters to attain the required specifications for their use case. Here’s how Q Microwave approaches the process:

Choosing the Right Materials

Q Microwave will verify that all materials are tested against Mil-Standard specifications and other rigorous internal quality standards. For example, our team will screen capacitors to a 0.1 pF tolerance for consistent and repeatable manufacturing, even for the most complex bandpass filters.

Quality Assurance and Testing

Quality components, like bandpass filters, help filter unwanted frequencies as more technology is added to the spectrum. However, not every application can benefit from an off-the-shelf RF filter.

RF and electrical engineers often need custom-made filters to attain the required specifications for their use cases while balancing trade-offs like size, cost, and power handling capability. Q Microwave offers custom RF bandpass filters with superior performance, including:

• Unique multiplexer designs

• Custom packaging for system integration

• Rapid semi-custom prototyping

• Wideband multi-octave filters with steep roll-off, low insertion loss, and high power handling

Download this Bandpass Filter Specification Checklist to determine your project’s requirements.

Q Microwave’s design team works directly with engineers to create custom mechanical outlines that can be swiftly integrated into custom assemblies. We also offer a variety of cost-effective packaging options, ranging from hermetically sealed designs to specialized surface mount packaging:

• PWB Surface Mount Technology (SMT)

• Formed Lead Packaging

• MicroStrip Packaging

• CoPlanar MicroStrip Packaging

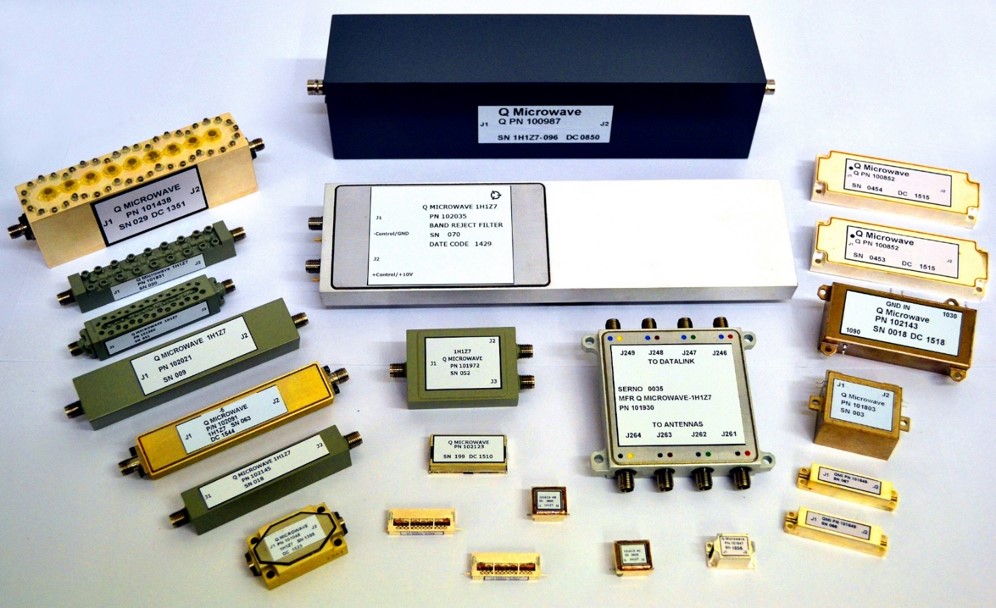

Visual Example of Filters and Components Q Microwave’s Engineers Have Created

Custom filter packaging delivery estimates depend on the size of the component, its shape, material, and other factors.

Partner with Q Microwave to Build Quality RF Bandpass Filters

Quality bandpass filters may be small, but they are powerful enough to form the foundation of reliable and high-performing RF systems. Q Microwave understands this necessity and works tirelessly to deliver unmatched solutions for your assembly.

For over 25 years, our expertise has aided engineers in designing filters with specific characteristics to meet challenging requirements. Our team of certified engineers can craft high-performing custom bandpass filter solutions for your project.

Q Microwave is a U.S.-based manufacturer prioritizing quality, agile lead times, and adherence to ISO 9001 and AS 9100 standards.

If you're looking for a partner with proven expertise, cutting-edge manufacturing, and a commitment to quality, Q Microwave is a reliable partner for your needs.

Contact Q Microwave today to build RF bandpass filters for your military, aerospace, and other special RF requirements.
