RF technology relies on filtering solutions to manage interference and maintain the coexistence of hundreds or thousands of equipment within the wireless ecosystem. Integrating advanced technologies with existing infrastructure creates the need for effective signal management. For instance, if you set up a defense radar in a rugged battlefield environment with significant low-frequency interference from nearby engines and machinery, the system may struggle to differentiate between vital high-frequency signals and unwanted noise.
A high pass filter addresses this spectral congestion by selectively attenuating signals below a defined cutoff frequency while preserving those above it. Careful attention to component design impacts a high pass filter's performance, including its ability to achieve minimal insertion loss and sharp roll-off for high-frequency RF systems.
How Do You Approach Filter Design in Your Projects?
When integrating high pass filters, balancing performance and integration challenges is essential. This blog examines the practical applications of high pass filters in RF projects, emphasizing their influence on performance and the critical design considerations for their implementation in RF applications.
What is a High Pass Filter?
A high pass filter allows higher-frequency signals to pass through while attenuating lower frequencies. Low-frequency noise, such as power line interference (50/60 Hz) or other spurious signals, can degrade the signal-to-noise ratio (SNR) and result in distortion or false data. High pass filters block these unwanted low-frequency components and preserve the fidelity of higher-frequency signals.
High Pass Filter Use Cases and Their Differences
1. Audio Systems
A high pass filter blocks bass (low-frequency) frequencies in an audio system to prevent low-end rumble from interfering with vocals or higher-pitched instruments. Audio systems use resistor-capacitor (RC) circuits, which are simpler and sufficient for filtering low-frequency noise, such as a bass rumble.
2. Military Radar Systems
In military radar systems, high pass filters eliminate unwanted low-frequency signals, including ground clutter or surrounding noise, and enable greater precision in detecting fast-moving targets such as aircraft or missiles. These systems use inductance-capacitance (LC) circuits.

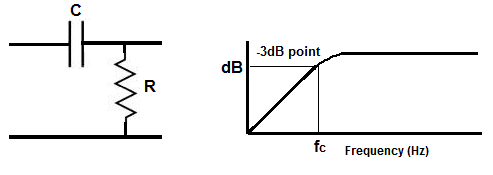

Passive High Pass Filter Diagram
High Pass Filter Cut-Off Frequency
RF engineers achieve high pass precision filtering by precisely determining the cut-off frequency, where the filter transitions from attenuating to passing signals. This is the frequency at which the output signal drops by 3 dB from its in-band level, indicating a half-power reduction. This is commonly called the half-power point or ±3 dB frequency, assuming a constant input level.
While the formula for calculating the cut-off frequency is well-known, its accuracy relies on several factors. For RF applications, inductance (L) and capacitance (C) values are derived from the combined properties of the circuit, including parasitic effects that can arise from the physical layout and components.
High Pass Filter Cut-Off Frequency Formula
Parasitic Effects and Their Impact on High Pass Filters
Parasitic effects, such as stray capacitance, occur when electricity leaks or interacts between circuit parts that are close together, even if they aren’t meant to. These unintended interactions can alter values and cause performance deviations.
Accounting for parasitic effects during the design phase helps engineers fine-tune cut-off frequencies, component values, and layout to maintain optimal signal quality.
Advanced Design Considerations for Defense and Aerospace Applications
High pass filters are widely used across various applications, but some have highly specialized requirements, especially in defense and aerospace. For instance, defense applications must adhere to stringent standards such as MIL-STD, which are far more rigorous than those typically followed in commercial audio use cases.
High Pass Filter Design Considerations in Defense and Aerospace
These high-grade components must withstand extreme temperature fluctuations, high vibrations, and mechanical shocks caused by movement, collisions, or impacts. They must operate without performance degradation in environments with high levels of EMI, such as those generated by radar systems, communication equipment, and electronic warfare tools. High pass filters must maintain consistent cut-off frequencies and signal clarity, even under varying conditions, while balancing trade-offs and challenges involved in designing practical, realizable solutions.
Given that size and weight are critical in defense applications, filters are often designed to be as compact and lightweight as possible without sacrificing functionality.
"We work closely with customers to address specification trade-offs. If size is a priority, for example, we might recommend an option that fits the requirement but adjusts performance slightly. The same goes for balancing power levels and performance. We always focus on delivering the best value for the client’s specific needs."
- Rafid Ali, Application Engineer, Q Microwave
In radar signal processing, high pass filters remove low-frequency noise and unwanted signals, such as clutter from stationary objects. We begin the process by feeding the radar signal into the high pass filter, attenuating low-frequency components while preserving higher-frequency signals representing moving targets. This way, the clarity and accuracy of the radar output are enhanced, resulting in improved target detection and tracking.
High Pass Filter Optimum Design Process
Designing a high pass filter involves careful consideration of its application's specific requirements. Several factors, including cut-off frequency, insertion loss, and roll-off characteristics, must be tailored to balance size, power efficiency, and environmental constraints. Considering trade-offs during the design process ensures the filter achieves performance requirements and practical limitations.
Q Microwave calls this building “realizable designs.”
Rigorous prototyping and testing are key to manufacturing filters that are realizable for real-world conditions. High pass filters utilized in challenging environments, such as aerospace or defense, must withstand extreme temperatures, vibrations, and mechanical stress while maintaining consistent performance.
Partnering with an experienced RF manufacturer helps guarantee that the design and testing processes align with industry standards and environmental demands. By addressing these considerations, the resulting filters can reliably support the performance of critical RF systems in even the most demanding conditions.
Are You Ready to Build High-Performance High Pass Filters for Your RF Use Case?
High pass filters are critical for achieving the signal clarity and performance RF engineers demand, especially in applications where low-frequency noise can compromise system integrity. Advanced RF projects often have requirements beyond the capabilities of standard off-the-shelf filters, requiring solutions as precise as they are reliable.
When designing high pass filters for RF applications, balancing simulation with real-world feasibility is crucial. Leveraging advanced simulation tools, creating optimized designs is possible before moving to physical prototypes. However, experienced engineers know that what’s simulated doesn’t always translate perfectly to what can be built. Understanding the gap between theoretical models and practical execution is crucial to delivering reliable solutions.
For example, Q Microwave’s proprietary method for reproducing the cover effect without needing a cover speeds up tuning and testing, helping you refine designs faster and more efficiently.
