Understanding Band Pass and Band Stop Filters: How They Compare

When working in complex RF environments like aerospace and defense, precision in signal control isn’t just a nice-to-have—it’s mission-critical. A key component in achieving this is selecting the correct filter topology. Whether you’re isolating a narrow radar signal or eliminating persistent interference, understanding the difference between band pass filters and band stop filters helps ensure clean, reliable signal performance across your systems.

This article breaks down how each filter works, compares their features, and explores how to choose the right one for your application. Armed with this knowledge, engineers can make smarter design decisions that lead to more effective RF systems.

What is a Band Pass Filter?

A band pass filter (BPF) is an electronic circuit that allows signals within a specific frequency range to pass through while attenuating those outside of it. While a bandpass filter can be formed by combining an LC low pass and high pass filter in series, this isn’t the only method. Alternative implementations include active filters, digital filters, and high-frequency solutions such as cavity or ceramic filters. Despite differences in design, a band pass filter’s core function is to isolate a defined frequency band, making it essential in environments with multiple overlapping signals. In aerospace and defense systems, where precision and clarity are critical, band pass filters ensure that only the desired frequencies, such as those between 2.0 GHz and 2.2 GHz, are transmitted to the receiver, suppressing unwanted signals and minimizing noise.

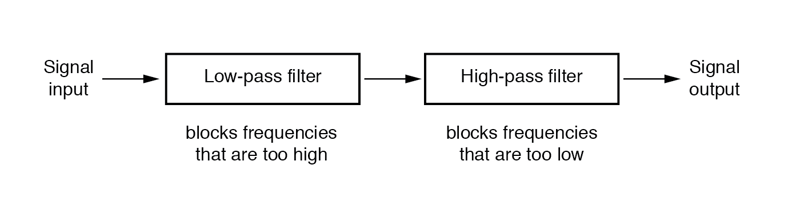

Band pass filter diagram showing how specific frequencies are passed while others are attenuated.

For example, a radar system operating over a 200 MHz bandwidth centered at 2.1 GHz would rely on a band pass filter tuned to that range to reject interference from adjacent frequencies and preserve accurate signal detection. These filters are widely used to isolate communication channels, filter out-of-band noise in sensor systems, and define RF paths in transceivers and telemetry equipment.

What is a Band Stop Filter?

A band stop filter, also known as a notch or band reject filter, is designed to attenuate signals within a specific frequency range while allowing all other frequencies outside that range to pass through. It functions as the inverse of a band pass filter and is typically built using resonant LC (inductor-capacitor) circuits tuned precisely to the unwanted frequency. This allows the filter to sharply reject interference without affecting the rest of the signal spectrum. For example, if a communication system is experiencing jamming at 1.8 GHz, a band stop filter tuned to that frequency can significantly reduce the interference while preserving surrounding signal content.

Band stop filter diagram showing how a specific frequency range is rejected while all other frequencies are allowed to pass

Difference Between Band Pass Filter and Band Stop Filter

Each filter has a strategic role depending on your system's objective: preserve or remove. Choosing incorrectly can lead to performance losses, interference leakage, or even system failure.

Guidelines for Filter Design and Selection

Choosing the right filter is more than just selecting between band pass and band stop; it requires aligning the filter type with your signal environment, system requirements, and design constraints. Whether you're isolating a target signal or rejecting interference, the performance of your filter depends heavily on how it's designed and implemented. The following considerations—filter purpose, LC topology, Q factor, and tuning precision—will help guide engineers in selecting the best solution for their application.

Band pass filters are ideal when you need to isolate and preserve a specific frequency range while blocking unwanted signals outside that range. In contrast, band stop filters are used to suppress known interference or jamming at specific frequencies while allowing all other signals to pass through. Matching the filter type to your signal environment is critical. Band pass filters are typically used for narrowband signals in noisy or crowded spectra, while band stop filters are more effective for eliminating narrowband interference within wideband systems.

LC Topology

One of the most important design factors is the LC topology. The arrangement of inductors (L) and capacitors (C), whether in series, parallel, pi, or T-networks, affects signal loss, component count, physical size, and ease of tuning. Simpler topologies may offer lower insertion loss but less selectivity, while more complex designs can improve performance at the cost of increased size and tuning complexity.
Band pass filters often use coupled resonators or cascaded LC stages to achieve a sharper passband and better selectivity for narrow frequency ranges.

Band stop filters typically rely on parallel LC circuits (resonant traps) to target and reject unwanted frequencies without affecting the broader spectrum.

Q Factor

The Q factor, or quality factor, describes the filter’s selectivity and sharpness of response around its resonant frequency. High-Q components provide better frequency isolation or rejection, which is especially useful in applications that require pinpoint precision. However, these components are also more sensitive to temperature fluctuations and part tolerances, which can shift the filter’s performance and require compensation in the design.
Use high-Q band pass filters to sharply isolate narrow frequency bands, such as selecting a specific communication channel in a dense signal environment.

Use high-Q band stop filters when you need to eliminate a narrow interference tone, like a 1.8 GHz jammer, without disrupting surrounding signals.
Lower-Q filters are more forgiving and stable under varying conditions but offer broader, less selective filtering.

Bandwidth Tuning Precision

In applications with tight bandwidth specifications, tuning precision becomes critical. Filters with narrow passbands or rejection bands must use highly accurate LC values and often incorporate variable elements like trimmers or varactors for fine adjustment. This ensures the filter response remains stable and aligned with design requirements, even in the face of component variations or environmental changes.

Band pass filters benefit from precise tuning when they must isolate signals that are adjacent to sources of interference. Band stop filters require high tuning precision when the undesired frequency lies close to valuable signal content and needs to be rejected without affecting neighboring frequencies.

By factoring in topology, Q, and tuning precision along with the intended use case, engineers can build filters that are not only effective but also reliable across a range of operating conditions. In mission-critical aerospace and defense systems, that reliability makes all the difference.

Your Filter Strategy, Optimized for Mission Readiness

Choosing the right band pass or band stop filter is a critical step in achieving clean, accurate signal processing in aerospace and defense systems. Each filter type plays a distinct role, whether it's isolating mission-critical signals or rejecting harmful interference, and selecting the right one can significantly impact system reliability and performance. Yet, filter design is more than just theory.

In real-world A&D environments, filters must perform under extreme conditions, withstanding thermal variation, vibration, and demanding bandwidth or rejection requirements. That’s why it’s essential to partner with a trusted, certified manufacturer like Q Microwave. With decades of experience, Q Microwave delivers high-performance, custom-engineered filters designed specifically for military and aerospace applications. From precision-tuned components to rugged, flight-qualified designs, we build filters that meet your specs and exceed your expectations.

Connect with Q Microwave today and ensure your signal chain is built for mission success.
