Understanding Passband Frequency in Modern RF and Microwave Systems

Summary

• The passband is the non-negotiable window for the mission-critical signal, but it's more than the standard -3 dB bandwidth; high-performance systems require a much tighter spec (e.g., 0.5 dB) to minimize power loss and preserve signal integrity (EVM/pulse resolution) in the face of noise and blockers.
• Filter design involves critical trade-offs between filter types and physical realization, each impacting insertion loss, return loss, and thermal stability.
• Accurate design requires specifying filter edges with margin to account for modulation bandwidth and drift, recognizing that the true center frequency is the geometric mean for wideband applications, and managing distortion metrics to achieve mission success.

We rightly obsess over the noise figure and linearity of our active components when designing RF modules. However, the operational integrity of any high-performance system, whether for EW, radar, or SATCOM, is also influenced by its passive filters. The passband is the non-negotiable window where the mission-critical signal must live.

But that “window” extends beyond the nominal -3 dB specification. That's the textbook definition. For us, the passband is a multi-variable problem that determines how signals propagate through the RF front-end during a mission.

We must therefore address the engineering trade-offs that govern performance within that passband. This article explores the role of passband frequency in maintaining accurate, efficient, and reliable RF system performance in high-interference applications.

Fundamentals of Passband Frequency and Frequency Response

While we often talk about the passband as a single entity, a filter's performance is really a story told in three distinct zones.

Courtesy: Nuts and Volts

1. Passband. This is the frequency range over which the signal must travel with minimal attenuation. Your system's link budget determines how small this loss can be. While many define the passband as the 3 dB bandwidth, high-performance systems often require a tighter specification, such as a 1 dB or 0.5 dB bandwidth, to preserve signal integrity and minimize power loss.
2. Stopband. A stopband is the rejection zone, where the filter must attenuate unwanted signals, such as blockers, spurs, or interference, to a level that prevents them from desensitizing your LNA or mixing with your LO.
3. Transition Band. The region connecting the passband and stopband is the transition band, or the filter skirt. The width of this skirt defines the filter's selectivity.

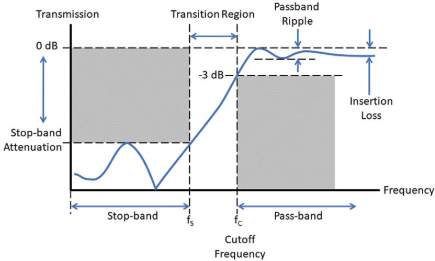

A narrow transition from passband to deep rejection requires a high-order filter and complex design, but it's essential when you must operate near a high-power interferer. This entire relationship is captured in the classic amplitude-frequency response plot, which is the fundamental scorecard for any filter.

To engineer a filter, you must quantify its passband. You can accomplish this with a few fundamental parameters.

Define the edges of the passband as the cutoff frequencies, which are the lower frequency (fL) and the upper frequency (fH). These are the frequencies at which the signal power has dropped by half, a point we universally refer to as the -3 dB point.

These two points give us the filter's primary characteristics:

• The Bandwidth (BW) is the total width of the passband, calculated as Bandwidth (BW) = fH – fL.
• For most filters, Center Frequency (f₀) is the geometric mean of the cutoff frequencies: f₀ = √(fL × fH).

We use the geometric mean because RF filter responses are mathematically symmetrical on a logarithmic frequency scale, not a linear one. The arithmetic mean ((fL + fH) / 2) is only a close approximation for very narrowband filters. For a 2-4 GHz octave-band filter, the true center is 2.828 GHz, not 3 GHz. This distinction is critical for accurate modeling, especially in wideband systems.

These parameters are a direct result of the filter's transfer function, which is physically realized by its resonant structures. For instance, consider a simple series RLC circuit, the fundamental building block for a lumped-element bandpass filter.

This circuit has a resonant frequency (f₀) where the inductive reactance (XL) and capacitive reactance (XC) cancel each other out. This point of minimum impedance defines the center of our passband:

The "sharpness" of this passband is determined by the circuit's Quality Factor (Q). The Q factor relates the energy stored in the L and C elements to the energy dissipated by the R element. The filter's bandwidth is inversely proportional to Q:

A high-Q filter (e.g., Q=100) will have a very narrow, selective passband. A low-Q filter (e.g., Q=5) will be broad. This f₀/Q relationship is a core principle, whether we are building a simple LC filter, a combline cavity filter, or a ceramic resonator.

Why Passband Frequency Matters in RF Chains

The passband functions as a precision shaper, dictating which spectral components of your signal survive, and in what condition, to the next stage.

Any distortion within this band has immediate consequences. Amplitude ripple (non-flatness) or phase non-linearity (poor group delay), for instance, directly degrades the signal. For a high-order QAM waveform, this distortion increases the Error Vector Magnitude (EVM). For a radar, it smears the pulse, reducing range resolution.

The passband's shape and width ultimately define the usable channel, which sets the boundaries for what your system can process in the presence of noise and interference.

Filter Types, Topologies, and Passband Behavior

Classical Filter Types and Their Trade-Offs

Choosing a Butterworth, Chebyshev, Bessel, or Elliptic response requires balancing which performance metric matters most for the application. The table below summarizes common filter types, their passband characteristics, and key trade-offs:

Physical Realizations and Their Passband Impact

Different filter realizations affect passband behavior in distinct ways, determining how effectively unwanted signals are rejected while preserving desired signals. The table below highlights common implementations and their impact on performance:

Managing Trade-Offs in Passband Frequency Design

The entire discipline of RF filter design is an exercise in managing trade-offs.

For instance, a wide passband is essential for high-throughput datalinks or for a radar's wide-sweep coverage. However, a wide band also opens the door to more noise. Increasing the passband directly raises the integrated noise floor, which degrades the receiver’s sensitivity and permits unwanted signals at the band edges.

Tip: Set the band edges to cover the desired signal while limiting noise, leveraging multi-stage filters or preselectors to control out-of-band interference.

Conversely, a very narrow passband can notch out known interferers but introduces its own risks. If the passband is too tight, the band edges may clip outer modulation sidebands of your own signal, degrading EVM, especially if the center frequency drifts with temperature or component variation.

Tip: Simulate filter response over temperature and process corners. Set the band edges with sufficient margin to accommodate modulation bandwidth and predictable drift.

SWaP constraints and environmental stress are known to further complicate S-parameter trade-offs. A high-order cavity filter offers sharp bandpass edges and excellent selectivity but is heavy and bulky. A compact microstrip filter fits the board but may drift hundreds of MHz across -50°C to +85°C, shifting the effective bandpass and misaligning the center frequency.

Tip: Consider the trade-off between mechanical stability and thermal drift. Implement temperature-compensated designs or tunable elements to maintain accurate band alignment throughout operation.

To achieve passband integrity, you must specify a filter using a precise set of performance metrics. Each one defines a specific boundary for system-level success or failure.

Achieve High-Performance RF Systems Through Rigorous Passband Design

We have established that the passband is far more than a -3 dB window on a datasheet. It is the primary gate that determines which frequencies pass through your system.

When that gate drifts with temperature, or if its group delay isn't flat, the system's performance degrades.

This is why the hardware you specify has to be engineered for frequency and performance integrity from the start. As engineers, our job is to mitigate this risk.

If you are fighting passband drift in a thermal chamber, or if you need to solve a complex integration challenge for an EW, radar, or SATCOM platform, get in touch with Q Microwave today!

FAQs for Passband Frequency

Q: What is the passband of an RF filter?

A: The passband is the non-negotiable frequency range through which the mission-critical signal is allowed to travel with minimal attenuation. While the textbook definition is typically the -3 dB bandwidth, high-performance systems often require a much tighter specification, such as -1 dB or -0.5 dB, to ensure signal integrity and minimize power loss.

Q: What is the difference between the passband, stopband, and transition band?

A: The passband is where the desired signal passes with low loss. The stopband is the rejection zone where unwanted signals (like blockers and interference) must be highly attenuated. The transition band (or filter skirt) is the region between the passband and the stopband, and its width defines the filter's selectivity.
