High Pass Filter Transfer Function: Ensuring "Kickass" Precision in Military RF Systems

How do you make sure your radar or electronic warfare system captures only the high-frequency signals it requires? Use high pass filters. But to perform as expected, these filters need a carefully designed transfer function.

Beyond its theoretical concept, a transfer function represents the behavior of an RF filter by describing how the filter modifies input signals at different frequencies. RF engineers use its mathematical framework to create physically realizable filter designs.

Let’s explore the mathematical foundation behind high pass filter transfer functions, their impact on mission-critical RF performance, and the engineering factors that guide their construction for modern defense applications.

High Pass Filter Transfer Function in Military RF Systems

To support military RF applications, high pass filters must effectively suppress low-frequency interference and allow high-frequency signals to propagate without distortion.

What experts call “transfer function” is pivotal in this process, determining how rapidly unwanted frequencies are attenuated, how much signal power is lost in the passband, and how well the filter maintains impedance matching with surrounding circuitry. For an LC high pass filter, the standard transfer function is:

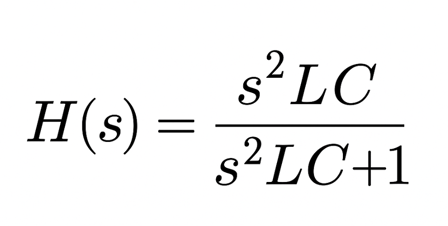

Standard LC high pass filter transfer function formula

Where s=jω (Laplace variable), and ωc=1LC is the cutoff angular frequency.

This formula allows RF engineers to simulate, refine, and validate high pass filter designs.

Accurately calculating and applying the transfer function controls the filter’s roll-off rate, helping to reduce low-frequency clutter and support radar target resolution. This allows the filter to effectively block unwanted signals like jamming or environmental noise that can mask or distort critical high-frequency returns. In essence, precise roll-off control improves target discrimination and tracking accuracy, which ultimately enhances situational awareness and threat response in complex electromagnetic environments.

Furthermore, transfer function influences insertion loss and impedance matching.

Low insertion loss maintains signal strength in electronic warfare systems and reduces the risk of being detected by adversaries while improving the efficacy of countermeasures. Meanwhile, precise impedance control minimizes signal reflections that can distort transmissions. For airborne military radios operating in the UHF band, a poorly designed LC high pass filter with excessive insertion loss can weaken encrypted signals and increase their vulnerability to interception or interference.

Design Tips for Military-Grade High Pass Filters

Translating the high pass filter transfer function into a realizable design demands precise component selection, optimized circuit topology, and rigorous tuning methods. To achieve these goals, designers must carefully balance performance factors and component characteristics. Apply the following tips to develop filters according to your project’s requirements:

Tip #1: Balance Frequency Response and Stability

The cutoff frequency is determined by the relationship  ωc=1LC . Higher L values improve low-frequency attenuation but increase size and parasitic resistance, while smaller C values enhance roll-off sharpness but can introduce voltage handling limitations.

To achieve the desirable performance, selecting high-Q inductors and capacitors with low equivalent series resistance (ESR) reduces insertion loss and helps preserve signal strength throughout the signal chain.

Tip #2: Match the Design to Application Requirements

You may configure military-grade high pass filters in various ways, depending on system requirements, including:

• Simple Series LC. This term generally refers to the basic combination of an inductor (L) and a capacitor (C). To create a high-pass filter using these components, different configurations can be used. For example, placing a capacitor in series at the input and an inductor in shunt to ground forms an effective second-order high-pass filter.
• Cascaded LC Stages. Cascading multiple LC filter sections steepens the roll-off slope and enhances interference rejection. Electronic warfare and radar systems utilize specific arrangements of filter elements to achieve better frequency selectivity and maintain continuous impedance.
• Lattice and Doubly Terminated Filters. These configurations enhance impedance matching and minimize signal reflections, making them ideal for critical secure military communications.

Tip #3: Assess Performance Trade-Offs

Minimize Insertion Loss Without Compromising Roll-Off

Variations in inductor (L) and capacitor (C) values impact the filter’s overall performance, demanding rigorous tuning to reconcile conflicting design objectives.

Insertion loss (IL) is influenced by the quality factor (Q) of inductors and capacitors, as well as the resistive losses within these components. If you increase inductance (L) to improve low-frequency rejection, you may introduce series resistance, which can lead to higher insertion loss and reduced power efficiency. To mitigate this:

• Choose air-core inductors to reduce power dissipation.
• Select capacitors with low equivalent series resistance (ESR) to minimize unwanted losses and maintain high-frequency response.
• Properly match source and load impedances to reduce signal reflection and maximize power transfer.

Manage Phase Shift and System Timing Effects

Higher-order filters offer sharper roll-off but introduce additional poles that induce phase shift. In radar applications, undue phase delay can distort pulse timing and impair target detection accuracy. Manage phase response by:

• Balancing sharp roll-off with controlled phase characteristics using Bessel or transitional filter approximations.
• Distributing phase shift more uniformly by strategically placing poles and zeros to minimize distortion.
• Flattening group delay in time-sensitive applications with compensation networks or all-pass filters.

Account for Component Tolerances and Environmental Fluctuations

• Temperature fluctuations, mechanical stress, and component tolerances are factors that can shift the cutoff frequency and degrade filter performance. To maintain stability in the field:

  Use temperature-stable dielectrics to minimize frequency drift and sustain performance.
• Employ temperature cycling to improve filter stability. While it does not completely eliminate temperature shifts, it makes them more predictable and consistent.
• Run simulations to evaluate tolerances, predict performance deviations, and strengthen reliability.

Tip #4: Work with an Expert RF Solutions Partner

Even the most well-designed high pass filters undergo rigorous validation to meet military standards for signal integrity, environmental resilience, and electromagnetic compatibility. Partnering with an experienced RF specialist provides access to specialized modeling, prototyping, and testing resources to streamline development.

Engaging with seasoned professionals streamlines design, validates performance, and fulfills compliance requirements. Their involvement can accelerate design cycles and enhance field readiness.

Succeed in Your Next Mission with Expert-Engineered High Pass Filters

Now that the fundamentals of high pass filter transfer functions are understood, designing with precision becomes the next priority. Partnering with a certified expert like Q Microwave helps you apply best practices and customize filters to meet your project requirements.

With over 25 years of experience, Q Microwave offers a broad range of standard and off-the-shelf filters and subsystems. Utilizing state-of-the-art equipment for design, testing, and compliance, we deliver reliable and high-performance solutions to help you succeed with your mission.

Contact our RF experts today to discuss developing high pass filters for your next project.
