What You Need to Know About Band Stop Filter Circuits

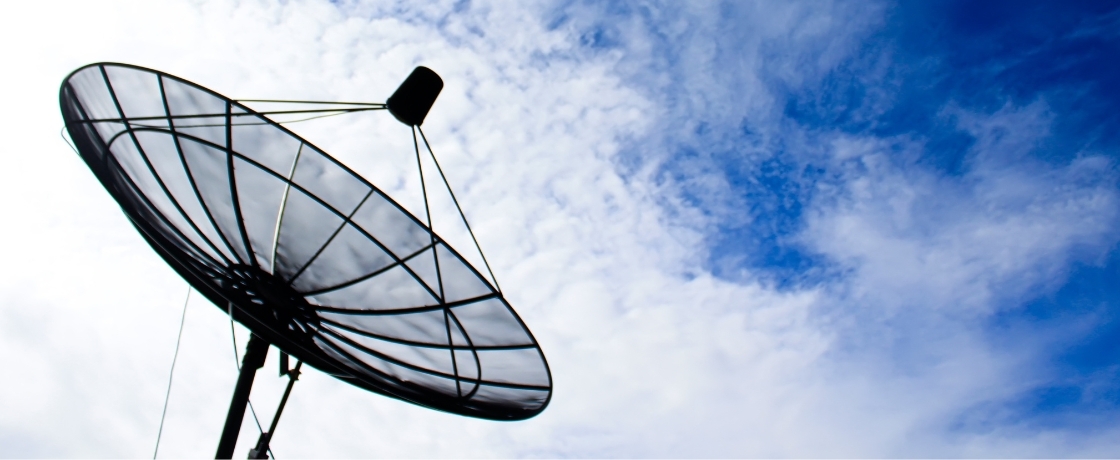

A mesh satellite dish, which uses a Band Stop Filter Circuit to eliminate signal interference.

In advanced RF systems (particularly in aerospace, defense, and satellite platforms), filters are not optional add-ons. They are essential to preserving signal integrity, mitigating interference, and ensuring compliance with stringent spectrum regulations.

A band stop filter is designed to block a specific range of frequencies, called the stop band, while passing frequencies outside that range. While this seems straightforward in theory, achieving sharp and reliable rejection in practice is challenging. Factors such as component parasitics, PCB layout, temperature variations, and integration methods can all influence performance and must be carefully considered during design.

This article analyzes how various parts of a band stop filter affect its performance. It provides the insights you need to make informed technical and procurement decisions for mission-critical RF systems.

The Basics of Band Stop Filter Circuits

A band stop filter circuit attenuates signals within a defined stopband, while frequencies outside this range pass with minimal loss. Engineers often refer to a filter with a narrow stopband as a notch filter.

Band stop filters suppress harmonics, spurious tones, and narrowband interference that threaten sensitive receiver paths. A 60 Hz notch filter, for example, removes mains hum in instrumentation, while radar systems use sharp notches to reject nearby transmitters.

Performance depends on parameters such as center frequency, stopband width, insertion loss, and Q factor, which together determine rejection effectiveness without unduly degrading desired signals. In aerospace and defense, well-designed filters support emission control, protect satellite payload receivers, and strengthen communication links against interference and jamming.

Common Implementations

Band stop filter circuits appear in both passive and active designs, each with trade-offs in stability, flexibility, and performance. The choice depends on the requirements of the RF application.

Passive band stop filter circuits use inductors, capacitors, and resistors to provide stable performance with low insertion loss and high power handling. At RF and microwave frequencies, however, parasitics and PCB layout heavily influence results.

Active band stop filter circuits add amplifiers or tunable components to adjust the notch depth or frequency. While flexible, they introduce noise, distortion, and power demands, making them better suited to lower RF or Intermediate Frequency (IF) stages.

Exploring Circuit Topologies and Their System-Level Trade-Offs

The topology of a band stop filter circuit shapes how it balances rejection, bandwidth, and integration. Each approach (LC, microstrip, or cavity) comes with trade-offs in size, Q factor, power handling, and stability that must be matched to the system’s mission requirements:

  • LC Band Stop Filter Circuit. Parallel LC resonators provide compact solutions for RF lumped-element designs. At lower frequencies, component sizes can become large, limiting integration flexibility.
  • Twin-T and Bridged-T Topologies. Effective for low RF or IF applications and often used in active designs but less effective at higher RF where parasitics degrade performance.
  • Microstrip Notch Filters. Ideal for PCB-level integration at microwave frequencies, offering compact size and compatibility with planar circuits.
  • Cavity and Waveguide Filters. The gold standard for high-Q, high-power applications in radar or EW systems. These deliver exceptional rejection but at the cost of size and weight.

System-Level Considerations

Band stop filter selection involves weighing several system-level considerations.

Power handling is often decisive, with passive filters preferred in high-power environments where active designs may introduce distortion. Size and weight also play a major role in avionics and satellite payloads, where every gram matters.

For systems that require flexibility, some filters include turning screws, stubs, or varactors that allow post-manufacture adjustments. It is also important to ensure thermal stability so the filters maintain resonance and performance across extreme temperatures from –55 °C to +125 °C, as often required in defense applications.

Why Layout, Parasitics, and Coupling Can Make or Break a Filter

A band reject filter circuit that performs well in the lab may underperform once integrated, largely due to parasitic effects. PCB layout isn’t just a mechanical detail. It directly influences the filter’s electrical behavior. Stray capacitance between traces, inductance from vias and interconnects, and coupling with nearby digital or RF lines can all shift frequency response, reduce notch depth, and compromise rejection.

For example, a filter that delivers –40 dB rejection during bench testing may lose about 10–15 dB in dense PCB environments due to shared ground or unintended resonances. To avoid these pitfalls, RF and layout teams must collaborate early, using EM simulation to predict parasitic effects and enforce strict isolation for critical filter paths.

Managing Q Factor, Bandwidth, and Notch Depth

The performance of a band stop filter circuit is strongly shaped by its Q factor, which dictates how sharply signals are rejected within the stopboard. Component tolerances, PCB layout symmetry, and even small differences in trace lengths can shift the center frequency or alter notch depth. In active designs, bias conditions and feedback networks add further complexity, which makes the filter more sensitive to changes in its operating environment.

Tuning Variables

A band stop filter’s performance depends on component tolerances, especially in the inductors and capacitors of an LC or RLC band stop filter circuit. The PCB layout, trace lengths, symmetry, and grounding also affect the stability. In active circuits, bias and feedback must be carefully managed to avoid shifts in bandwidth or rejection.

Fine-Tuning Methods

Engineers refine designs with tools like varactors or Micro-Electro-Mechanical Systems (MEMS) for dynamic fine tuning. Cavity filters often use tuning screws while trimming capacitors that help align notch frequency when tolerances or parasitics cause drift.

Key Trade-Offs

Narrow notches deliver deep rejection but can detune with temperature. Wider stopbands add stability but risk affecting nearby signals. High Q values sharpen rejection but may increase ripple or insertion loss.

Mission-Critical Integration for Aerospace and Defense Systems

Aerospace and defense systems treat band stop filtering not as an option but as a gating requirement. Radar platforms use notch filters to suppress harmonics and spurious tones before they interfere with IF chains. Electronic warfare systems depend on adaptive designs to block jamming signals while satellites rely on them to ensure spectrum compliance.

Each of these applications demand precise and stable rejection to protect the sensitive receivers and maintain mission performance. Even small deviations in filter behavior can compromise system integrity.

At the same time, the platform constraints are unforgiving. Filters must not only fit into tight volumes, but they also need to operate under strict thermal budgets, and remain reliable in vibration and extreme temperature conditions. Passive-only designs are often preferred in power-limited subsystems. However, every solution must be engineered to perform beyond its datasheet in real-word environments.

Smarter Technical and Procurement Decisions Through Deeper Insight

A filter that meets specs in the lab can still fail in field systems if parasitics, environmental conditions, or integration effects are ignored. For instance, satellite payloads may suffer from unexpected coupling, while even small insertion loss in radar front end can reduce receiver sensitivity. Such issues often stem from relying on datasheets without considering real-world conditions.

Common Pitfalls

Even well-designed filters can underperform if key factors are overlooked. Selecting solely by center frequency and stopband width ignores critical aspects like Q factor, passband ripple, and thermal stability. Relying only on datasheets overlooks PCB layout, enclosure effects, and connector parasitics, while skipping in-situ validation can lead to surprises when a filter that passes bench tests fails under real loads or EMI conditions.

What Procurement Engineers Should Ask

Procurement goes beyond comparing datasheets, as you must ensure filters will perform in the field. Ask whether the vendor can co-design for thermal or mechanical constraints, provide layout guidance, EM simulation, or post-integration tuning, and verify qualification for thermal cycling, vibration, and EMI compliance to prevent failures in mission-critical applications like avionics, missile guidance, or satellite payloads.

Test and Compliance Engineer Tips

Validation cannot stop at the bench. Test and compliance engineers must confirm real-world performance by measuring in-band and out-of-band gain across temperature ranges, validating insertion loss and rejection under representative loads, and going beyond datasheet specs to ensure EMI/EMC compliance. This prevents filters that pass in isolation but fail MIL-STD-461 once integrated.

Q Microwave Band Stop Filter Circuits: Built for Harsh, High-Stakes Environments

At Q Microwave, we design band stop filter circuits for aerospace and defense platforms where reliability under harsh conditions is non-negotiable. Our filters are engineered to remain stable under vibration, wide thermal swings, and tight integration constraints that often cause conventional designs to underperform.

Each solution offers precise notch control, high rejection ratios, and ruggedized performance, with options for modular customization and tuning to match evolving mission requirements. Our filters are ideal for radar needing clean receiver paths, satellite payloads requiring spectrum compliance, and communications equipment needing jamming protection.

Beyond delivering components, we provide engineering expertise in layout, tuning, and compliance. This ensures that filters not only meet datasheet specs but also integrate seamlessly into real-world systems, helping teams reduce risk, cut redesign cycles, and bring critical capabilities to the field faster.

Take the Next Step Toward Smarter Filter Integration

A filter that looks good on paper can still underperform after integration, often due to layout parasitics, component tolerances, or EMI coupling. To avoid these issues, you must always understand circuit behavior in the context of the system, not just the schematic.

Your Q factor, notch depth, and bandwidth are tightly linked. Knowing how to balance these variables helps you prevent ripple, insertion loss, and detuning across temperature ranges. Likewise, your routing, trace geometry, and grounding all influence real-world performance, making collaboration between your circuit and layout teams essential for achieving the expected rejection and passband integrity.

If you rely on generic components, you risk overdesign, EMI failures, or costly rework late in the cycle. Precision applications instead demand application-specific filter behavior and integration support. By involving filter specialists at the design or procurement stage, you ensure that your technical goals align with physical and environmental constraints, reducing risk and minimizing costly iterations.

Get the clarity and control you need to specify, customize, or validate high-performance band stop filter circuits built for the demands of your RF systems. Partner with Q Microwave today to discuss your requirements, explore custom solutions, and ensure your next mission-critical design performs exactly as intended.
